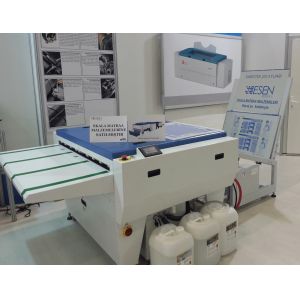

Thermal CTP Plate Processing Machine Series 900/1150/1250/1500
Application
Regardless of the PS plate or the CTP plate, a processing machine
is required for processing the plate after the exposure is
completed. EcooGraphix CTP Processor can be used with Offline /
Online Thermal CTP or CTCP or UV-CTP platesetters, such as Kodak,
Screen, Agfa, Creo, Amsky or Cron CTP machines.
Characteristics
The excellent overall design ensures the development effect, clear
outlets, stable product performance and strong reliability.
The development temperature and development time are precisely
controlled to meet the washing requirements of various plates and
potions, and the application range is wide.
The water-saving effect is remarkable. The precise control of the
washing time and the scientific design of the spraying method can
save 80% of water.
Specification
Machine Type
P-900; P-1150; P-1250; P-1500
Page Size
280-860 mm; 280-1100 mm; 280-1200 mm; 280-1500 mm
Plate Thickness
0.15-0.4mm
Processing Speed
Speed adjustable (10 - 60 seconds) 400 - 1000mm/minute
Temperature
10 to 45 ºC can be adjusted (automatic temperature control, cooling
system)
Developing Capacity
46L; 58L; 70L; 78L
Drying Temperature
20-65 ºC can be adjusted
Electricity Requirement
220V (208V - 240V) single-phase 50 or 60hz
Working Power
4.5KW; 5KW; 5.5KW; 6.5KW
Weight
355kg; 420kg; 512kg; 600kg
| Ecoo Processors Series |
| Model | P-900 | P-1150 | P-1250 | P-1500 |
| Page Size | 280-860 mm | 280-1100 mm | 280-1100 mm | 290-1500 mm |
| Plate Thickness | 0.15-0.4mm |
| Processing Speed | Speed adjustable(10 - 60 seconds) 400 - 1000mm/minute |
| Temperature | 10 to 45 ºC can be adjusted (automatic temperature control, cooling
system) |
| Developing Capacity | 46L | 58L | 70L | 78L |
| Drying Temperature | 20-65 ºC can be adjusted |
| Electricity Requirement | 220 V (208 V - 240 V) single-phase 50-60hz |
| Working Power | 4.5KW | 5KW | 5.5KW | 6.5KW |
| Weight | 355kg | 420kg | 512kg | 6500kg |
| Machine Size | 1420 x 1460 x 1280mm |
Full Producing line in Prepress room
Autoloader: Plate feeding, or said plate loading automatically
CTP: To transfer the image from computer to plate
Processor: To remove the non-image area from the plate
Stacker: To collect the plate after processing/developing
Producing And Packing
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
More details
FAQ
Q1: What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates,
Offset Inks, Offset Printing Blankets, Postpress Packing Equipment
and so on.
You can get the equipment and consumables all in one and no worry
about the after-sales service from our company.
Q2: Where is your factory?
Our CTP Processor machine factory is in Shanghai, you are warmly
welcome to visit our factory!
Q3: Is there any certification for your CTP Processor?
Yes, all our machines have been certified by SGS and CE.
Q4: Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support?
Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets, service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are
also many end users (printers) who have purchased the CTP products
from EcooGraphix China directly and EcooGraphix technical service
team support these installations remotely with regular onsite
visits.
These end users printers all run the CTP systems with full
satisfaction due to our robust quality, seamless remote service,
thorough training and maintanence. If you are a printer who is
considering purchasing directly from EcooGraphix China, there is no
hassle on installations, training and after sales service. We
guarantee your satisfaction.
