55pph High Efficiency Automatic CTP Thermal

Computer To Plate Making Machine

♐ Technical Advantages

Break through the traditional optical fiber technology limitation, and divide a laser beam into 256 channels of small laser beams that can be separately controlled, doubling the output speed; the square screen dot printed on the plate, with sharp edge feature and a rectangular-step-shaped distribution of energy, makes the image clearer, 10 times more accurate than 200lpi AM screening and the color saturation is increased by over 21%.

Use light valve device to divide a laser beam generated from single-source laser into 256 channels of small laser beams with even energy and its exposure screen dots are highly consistent.

The square screen dot with sharp edge feature makes the image clearer, 10 times more accurate than 200lpi AM screening and the color saturation is increased by over 21%.

Higher efficiency, lower loss-quick plate making with 256 channels of small laser beams, output speed doubled while drum speed only 20%-50% of the conventional.

♑ Specification

ECOO T-800 XA Automatic CTP Machine(Online System)

Model

T-800XA

Exposing Method

External Drum

Imaging System

256-channel
Discrete 825nm laser diode

Throughput

55 plate per hour
1030mm x 800mm, Plate sensitivity: 100mj/cm²

Plate Sizes

Max. 1163mm x 940mm
Min. 400mm x 300mm(300mmx250mm is available)

Exposing Size

Max. 1130mm x 884mm

Media Type

Positive thermal CTP plate

Plate Thickness

0.15mm to 0.30mm

Resolution

2400dpi

Repeatablity

± 5μm(Continuous exposing for 4 times or above on the same plate with

a temperature of 23℃ and humidity of 60%)

Interface

USB 2.0

Plate Loading

Automatic

Net Weight

1200kg

Machine Size(WxLxH)mm

2127 x 1610 x 1058

Power Supply

Single phase: 220AC, +6%, -10%, Power consumption: 4KW

Environment

Recommended: 21-25℃, Max. 15-30℃, Humidity: 40-70%

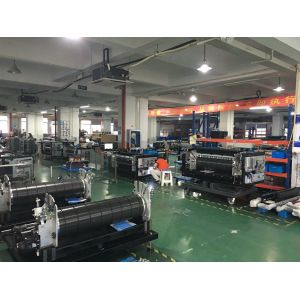

♓ Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

♒ Certificates

♍ FAQ

Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory ?

A: Our CTP machine factory is in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!

Q3: Is there any certification for your CTP machine ?

A: Yes, all our CTP machines have been certified by SGS and CE.

Q4: Can you also supply the workflow and RIP ?

A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.

Q5: What about the installation and sfter-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
