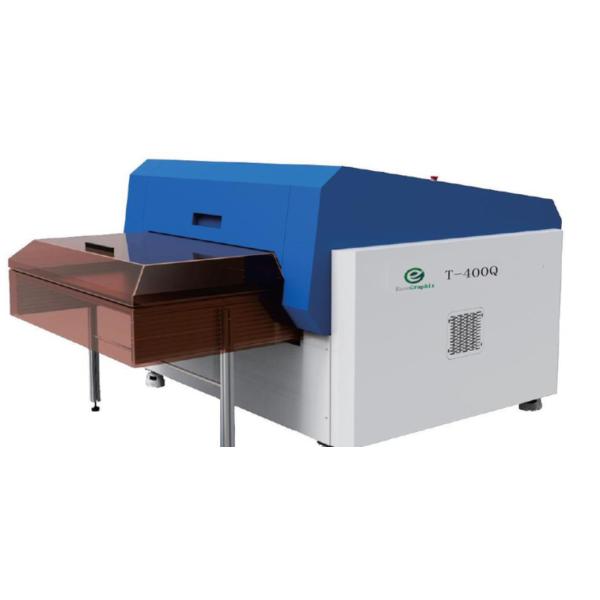

2400 Dpi Thermal CTP Machine With Inline Punching And Autoloader

    Buy cheap 2400 Dpi Thermal CTP Machine With Inline Punching And Autoloader from wholesalers

    Buy cheap 2400 Dpi Thermal CTP Machine With Inline Punching And Autoloader from wholesalers
    • Buy cheap 2400 Dpi Thermal CTP Machine With Inline Punching And Autoloader from wholesalers

    2400 Dpi Thermal CTP Machine With Inline Punching And Autoloader

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO T-400Q V/X
    Certification : ISO9000, CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 500 Sets/Year
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    2400 Dpi Thermal CTP Machine With Inline Punching And Autoloader

    Thermal Full-Automatic Online CTP Plate-Making Machine


    With square screen imaging technology adopted, reach saturation increased by 21% and fineness and precision ten times higher than the original; With linear motor high-precision positioning equipped, achieve longer service life and lower operation and maintenance costs for customers.


    Technical Advantages


    Break through the traditional optical fiber technology limitation, and divide a laser beam into 256 channels of small laser beams that can be separately controlled, doubling the output speed; the square screen dot printed on the plate, with sharp edge feature and a rectangular-step-shaped distribution of energy, makes the image clearer, 10 times more accurate than 200lpi AM screening and the color saturation is increased by over 21%.


    Specifications


    T-400 QS Specifications
    ModelT-400QS
    Exposing MethodExternal Drum
    Imaging System825nm laser

    Throughput



    25plates/hour
    800 x 660mm, 2400dpi, Plate sensitivity 120mj/cm²
    Plate SizesMax. 800mm x 660mm
    Min. 300mm x 300mm
    Plate Thickness0.15mm, 0.30mm
    ResolutionStandard: 2400 dpi or 1200 dpi
    Repeatability0.01mm
    InterfaceOptical Fiber(Fiber-way)
    Plate LoadingStandard: single cassette autoloader with manual plate insert function
    Inline Punching SystemOptional: Internal punching (maximum four sets of plate holes)
    Machine Size
    (W x Lx H)mm
    1450x1950x1290 (additional 600mm length for conveyor to wash unit)
    Power Supply

    CTP(single phase: 220V, Max power(Peak Value): 4KW)

    Simplified Autoloader(single phase: 220V; Max power(Peak Value): 900W)

    Multi-cassette Autoloader(single phase: 220V; Max power(Peak Value): 1100W)

    Operation
    Environment
    Recommended:21-25℃
    Allowable Temperature: 15-30℃
    Relative Humidity:40-70%
